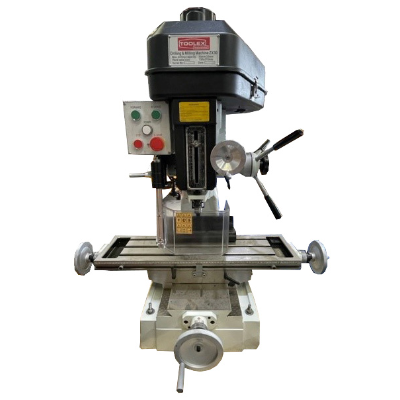

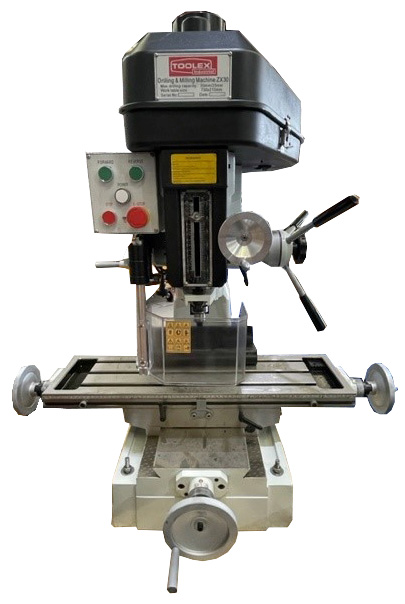

Toolex 512902 Milling &
Drilling Machine 2HP
Industrial CE Heavy Duty with
Chuck Guard
Features:
This machine has several uses,
such as surface cutting,
drilling, milling,and also can
be equipped with and electric
switch for tapping.
This machine is of fine
quality,can be operated
easily, and it is not limited
to skilled operators.
The drilling and milling
operation can be performed by
two methods.
1) Hand operation, which makes
quick drilling.
2) Worm gear feed operation
which makes slow milling.
Bronze adjustable muts, which
adiust the thread clearance
and reduce the wear They also
make screws rotated smoothly
and increase the thread
accuracy.
Whole column which makes this
machine strong,stable, and
also keep the high accuracy.
Head of tough cast ensures its
accuracy lasting and enduring
through the treatment of
precise boring
cylinder,grinding, and
internal stress relief.
To adjust belt and change
speed, new pulley cover is
easy to open the cover.
Specifications:
Model - 30
Drilling Capacity - 32mm
(1-1/4")
Face Mill Capacity - 76mm (3")
END Mill Capacity - 20mm
(3/4")
Swing - 395mm (15-1/2")
Max. Distance Spindle Nose to
Table - 460mm (18")
Spindle Taper - MT3 or R8
Spindle Stroke - 120mm
(4-3/4")
Diameter of Spindle Sleeve -
75mm (3")
Head Swivel - 360°
Diameter of Column - 115mm
(4-1/2")
Overall Height - 1100mm
(43-1/2")
Length - 1080mm (42-1/2")
Width - 1010mm (39-3/4")
Motor - 1.5kw (2HP)
Spindle Speed (12S) -
50Hz 100~2080 (4 pole)
60Hz 120~2500 (4 pole)
Travel of Table -
Forward and Backward - 175mm
(7")
Right and Left - 500mm
(19-3/4")
Working Area of Table - 730mm
x 210mm
Gross Weight - 300kg
