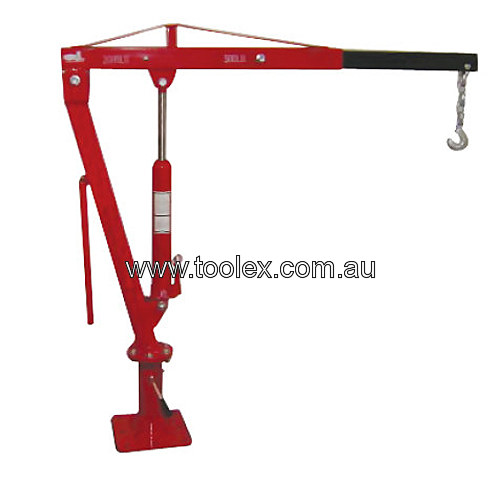

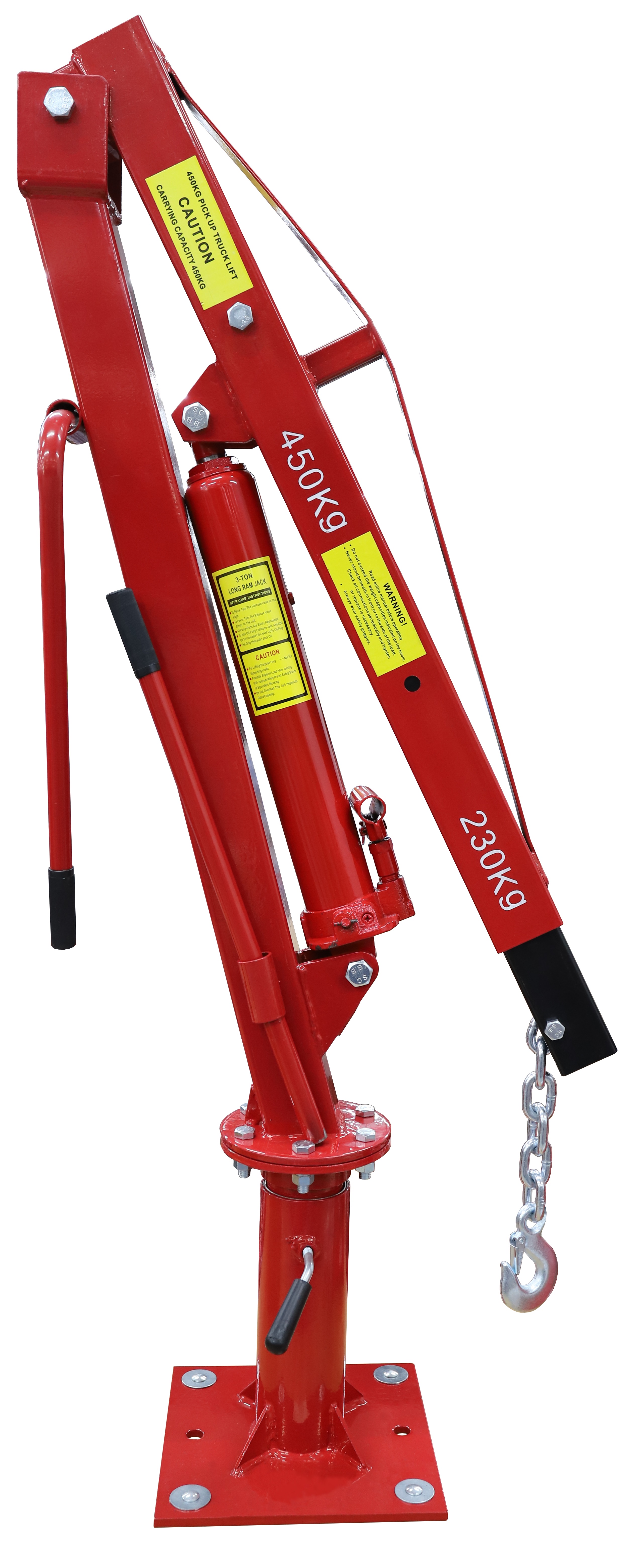

Hydraulic Truck Crane 450 Kg With Swivel Base Sx0204 (Sc1304)
Hydraulic Truck Crane 450 Kg With Swivel Base Sx0204 (Sc1304)
$349.00
($317.27 + GST)
($317.27 + GST)
Code: 524577
Brand: Toolex
Product Details
Hydraulic Truck Crane 450 Kg With Swivel Base Sx0204 (Sc1304)
Brand: Toolex
Product Details
Hydraulic Truck Crane 450 Kg With Swivel Base Sx0204 (Sc1304)
PRODUCT FEATURES
- Toolex 908kg Hydraulic Truck Crane Swivel Base Model
- 4 Way JIB movement
- Rated load capacity 2000lb or 500lb with jib extended
- Fitted with gal. Steel chain and hook with spring loaded keeper
- 360deg working rotation with lever handle control
- Fixed base section 300-500mm from floor or bench
- Swivel base lifting crane designed for workshop or small vehicle use
- 8 Mounting holes - Over all easy to operate and control
PRODUCT SPECIFICATIONS
- With Jib in 500lb (227kg) position: Jib length = 1370mm Lifting Height = 2400/580mm Lifting Radius = 1320mm
- With Jib in 2000lb (908kg) position: Jib length = 1000mm Lift Radius = 900mm
- Base Dimensions: 270mmx270mmx12m
- Gross Weight: 50kg Long Ram Jack rating 3 ton
- Main Jib 70x70 square steel - Jib Extensions 60x60 square steel
- Lower body section Telescopic 300 to 500mm high manually adjusted with keeper bolt
- Upper body section 70mm square steel
