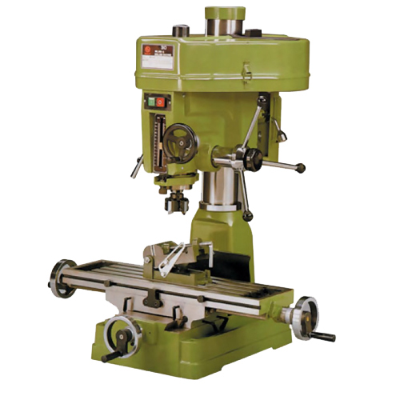

Milling Machine 2Hp Power Feed Industrial Taiwan

PRODUCT SPECIFICATIONS

• Drilling Capacity: 25mm (1") Steel
• Face Mill Capacity: 76mm (3")
• End Mill Capacity: 20mm (3/4")
• Swing: 405mm (15, 7/8")
• Spindle to Table: Max 480mm (18")
• Spindle Taper: MT3 R8
• Spindle Stroke: 130mm (5")
• Spindle sleeve Diameter: 75mm (3")
• Head Swivel: 360 degrees
• Column Diameter: 115mm (4, 1/2")
• Height (without stand): 1100mm (43, 1/2")
• Length: 1080mm (42, 1/2")
• Width: 1010mm (39, 3/4")
• Motor Size: 2HP 240V
• Spindle 12 Speeds 90 to 2150 RPM
• Table travel forward/Back: 175mm (7")
• Table travel left/right: 500mm (19, 3/4")
• Table work area: 730 x 210mm (28, 3/4" x 8, 1/4")
• Gross Weight: 300Kg (660LB)
• Table 'T' Slots 5/8" Standard Accessories:
• 3" Cutter
• 1/2" Chuck & Arbor
• 3, 1/2" Angle Vice
• 1/2" whitworth draw bar
