593414

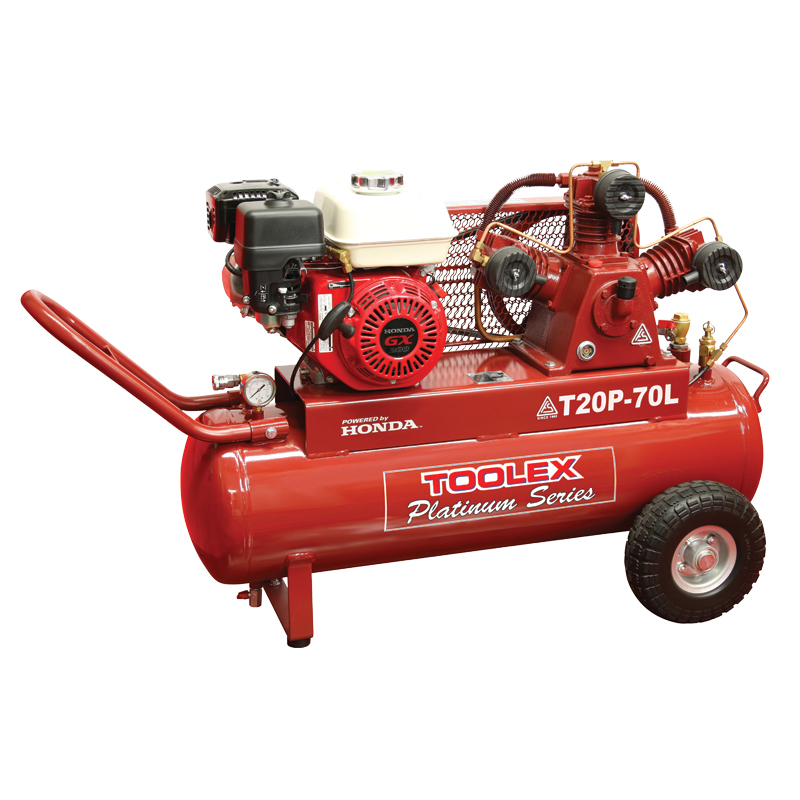

Toolex Air Compressor T20P-70
Petrol Platinum Series
Slow revving, Low
noise
Genuine TA65
Fusheng reciprocating air
compressor pump low speed,
single stage, full cast iron
construction with a worldwide
reputation for outstanding
performance and reliability.
Well proven in Australia for
more than 25 years
Superior pump design
with a high strength forges
steel crankshaft, low friction
roller main bearings,
extra-large oil reservoir,
long life piston rings,
precision machined cylinders,
deep directional cooling fins,
robust plate type inlet and
exhaust valves, and low noise
air intakes with replaceable
filter elements.
fitted with a
soft-start unloader valves
- Extended service life
“V” belt drive fully
enclosed by an impact
resistant metal safety guard
designed for easy maintenance
access and high flow-through
cooling machined steel
baseplate facilities accurate
pump and motor alignment
Oversized air
receiver tank designed
verified in accordance with
Australian standards AS1210.
Portable sets are mounted on
sturdy wheels for ease of
movement without manual
lifting. Stationary sets are
mounted on pallet feet for
quick and safe handling with a
forklift
Fully compliant with
Australian safety standards
and regulations for the
industrial workplace
2 year parts and
factory (not on site) labour
warranty (excluding the motor
which is covered by a 12 month
warranty) supplemented by an
Australian wide dealer network
offering sales, service and
genuine spare parts back up.
PRODUCT
SPECIFICATIONS
Petrol air
compressor
Pump Displacement:
CFM 17.3, L/min 489
Free air delivery:
CFM 11.3, L/min 319
No. of cylinder
quantities: 3 - Pump speed:
1024rpm
