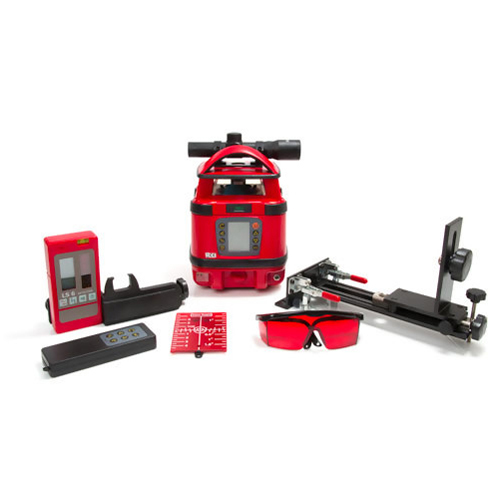

Laser Level Auto Sp70 600m range sweep to 60 deg horz vert slope fuction remote


Estimate Freight

To estimate the freight on this item simply enter the destination postcode and the desired quantity and click the "estimate" button.

Postcode

Quantity

PRODUCT FEATURES

  • Auto Laser Level SP70
  • Universal visual laser with dual grade
  • Equipped with high quality and 3 axis electronic vial sensors
  • Automatic self-levelling in both horizontal and vertical
  • Single or dual slope grade control
  • The SP70 is ideal for machine control and other dual grade applications, and has scanning and constant squaring for outside or jobs
  • Automatically self-levelling in both horizontal and vertical by step motor control: Accurately wide levelling range of +/-10% for fast set up
  • Choice of automatic or manual mode
  • H.I alert (tilt function) shuts off the laser if disturbed preventing inaccurate reading if H.I changes
  • High accuracy/low accuracy can be switched by Mrs of different usage. With checking and calibration function for users convenience
  • Keypad control conveniently detaches from the laser and can be used as a remote control SP70 can be calibrated using the remote control
  • Other features include constant squatting for 90deg angle scanning mode and spotting plumb beam. Single or dual grade - LCD displays slope setting from - 10% to + 10% in x, y & z

PRODUCT SPECIFICATIONS

  • Accuracy Horizontal: ± 10”
  • Accuracy Vertical: ±20”
  • Top point Accuracy: ±15” - Slope Range: Ă‚ 10.00%
  • Plummet: 50M
  • Automatic Self levelling Rage: ± 10% (±5.7°)
  • Laser Source: Visible laser diode 6 35mm, Class 2M or Class 3R
  • Scanning Control Range: 5°/30°/60°
  • Remote Control Range: <30m
  • Rotation Speed: 0, 5, 300, 600, 1000 RPM
  • Measuring Range (with detector): Radius 0.5 to 200m (class 2m), Radius 0.5 to >350m (class 3r)
  • Battery: NiMh, rechargeable 4 Size D alkaline batteries
  • Operation Time: 15Hrs/30Hrs (without self levelling)
  • Battery charging time: 4Hrs
  • Remote control batteries: AAA Alkaline
  • Waterproof to 1P66
  • Working temp range: Minus 15deg to +45deg
  • Fits to ISO type tripod with 5/8" x 11 thread
  • Dimensions: 170W x 170D x 241H mm
  • Weight: 2.5Kg (with battery)
