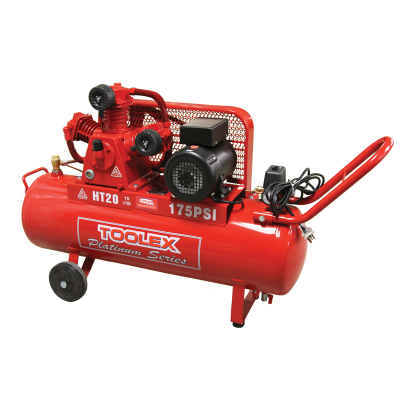

Air compressor 3.2HP HT20-70
Model Platinum series electric
powered
HTA65 Pump
High Pressure 175Psi
70L Handle Tank 2 wheels
Slow revving, Low noise
Genuine Fusheng reciprocating
air compressor pump low speed,
single stage, full cast iron
construction with a worldwide
reputation for outstanding
performance and reliability.
Well proven in Australia for
more than 25 years
Superior pump design with a
high strength forges steel
crankshaft, low friction
roller main bearings,
extra-large oil reservoir,
long life piston rings,
precision machined cylinders,
deep directional cooling fins,
robust plate type inlet and
exhaust valves, and low noise
air intakes with replaceable
filter elements.
Fully automated motor control
provided by a precision German
made condor pressure switch
fitted with a soft-start
unloader valve
Extended service life “VĂ
belt drive fully enclosed by
an impact resistant metal
safety guard designed for easy
maintenance access and high
flow-through cooling machined
steel baseplate facilities
accurate pump and motor
alignment
Oversized air receiver tank
designed verified in
accordance with Australian
standards AS1210. Portable
sets are mounted on sturdy
wheels for ease of movement
without manual lifting.
Stationary sets are mounted on
pallet feet for quick and safe
handling with a forklift
Fully compliant with
Australian safety standards
and regulations for the
industrial workplace
2 year parts and factory (not
on site) labour warranty
(excluding the motor which is
covered by a 12 month
warranty) supplemented by an
Australian wide dealer network
offering sales, service and
genuine spare parts back up.
PRODUCT
SPECIFICATIONS
Displacement CFM:
11.3
Displace ltrs/min:
320
Free air CFM: 9.2
Free air ltrs/min:
260
Receiver dimensions:
1260mm L x 400mm dia
Receiver capacity:
70 ltrs
Maximum pressure:
126 psi / 2390 watts 3.2hp
Power supply: 240
volt / 1 phase teco electric
motor
